Order Tools

Small, frequently requested order utilities in one module: your own order, invoice, shipment and credit memo numbers, extra columns in the order grid, a test order flag and guarded order deletion with an audit log. Everything that changes behaviour is off by default. This guide covers installation, configuration and day-to-day use.

• Admin demo: https://demo.softawarecommerce.com/try-admin/order-tools
• Changelog: Release notes · Questions: FAQ

1. Requirements

2. Installation

Install with Composer from repo.softawarecommerce.com. The access keys are in your account on softawarecommerce.com; see Composer access for details.

composer config repositories.softaware composer https://repo.softawarecommerce.com
composer config --auth http-basic.repo.softawarecommerce.com PUBLIC_KEY PRIVATE_KEY
composer require softaware/module-order-tools
bin/magento setup:upgrade
bin/magento setup:di:compile            # production mode only
bin/magento setup:static-content:deploy # production mode only
bin/magento cache:flush
bin/magento softaware:order-tools:grid:backfill

The last command fills the new order grid columns for orders placed before the installation (section 5). Orders saved later are handled by Magento's own grid indexer.

To update later: composer update softaware/module-order-tools, then the same bin/magento commands.

After installation the admin menu has Softaware > Order Tools with Deleted Orders Log, Document Numbers and Settings. Nothing changes in your store until you switch a feature on.

3. Settings

The settings are in two sections of the Softaware tab under Stores > Configuration:

• Softaware > Order Tools: the master switch, the order grid and deleting orders (default scope only).
• Softaware > Order Tools: Document Numbers: numbering per document type (default, website or store view scope).

General

Order Grid

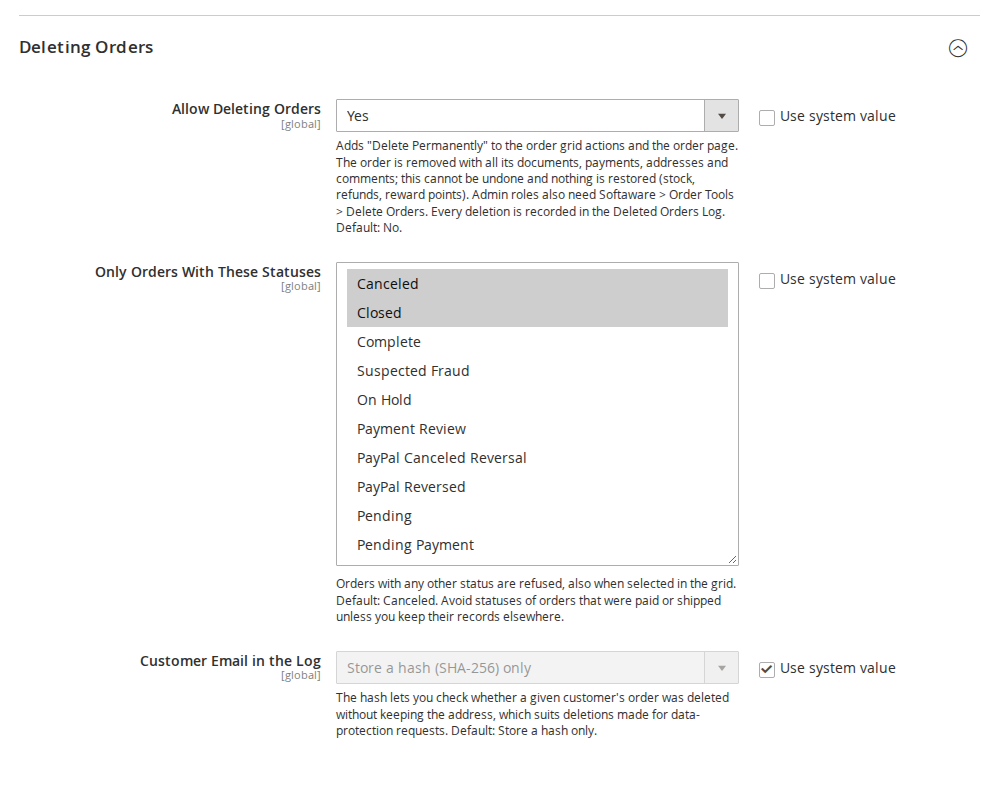

Deleting Orders

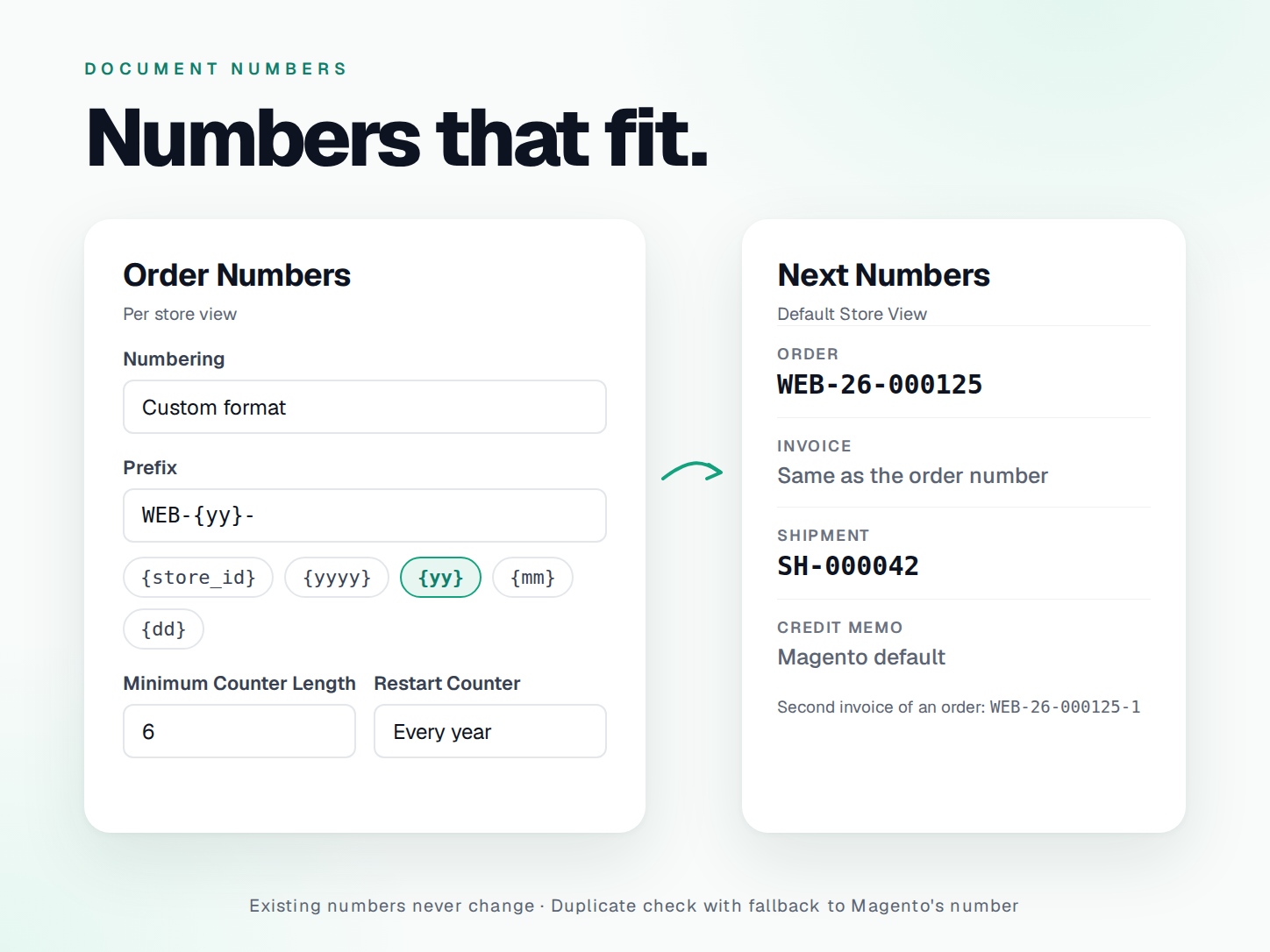

4. Document numbers

Open Stores > Configuration > Softaware > Order Tools: Document Numbers (or Softaware > Order Tools > Document Numbers). There is one group each for Order Numbers, Invoice Numbers, Shipment Numbers and Credit Memo Numbers, and a Next Numbers table at the top.

Settings per document type

Placeholders in the prefix and suffix use the store view's time zone:

The character rules keep numbers safe in URLs, PDF file names and CSV files.

Example

Prefix WEB-{yy}-, minimum counter length 6, start value 1: the orders are numbered WEB-26-000001, WEB-26-000002, and so on. With the same settings from the command line:

bin/magento config:set softaware_ordertools_numbers/order/mode custom
bin/magento config:set softaware_ordertools_numbers/order/prefix 'WEB-{yy}-'
bin/magento config:set softaware_ordertools_numbers/order/length 6

Same as the order number

With Same as the order number, the first invoice of order WEB-26-000123 is WEB-26-000123, a second invoice of the same order is WEB-26-000123-1, then -2, and so on. The same applies to shipments and credit memos.

Restarting the counter

The counter restarts at the start value only if the number contains the period: {yyyy} or {yy} for every year, plus {mm} for every month. Otherwise it keeps counting, so numbers never repeat. The admin refuses a restart setting that would not be safe. The restart is set in the default scope, because store views with the same prefix and suffix share one counter.

Counters and uniqueness

• Store views with the same prefix and suffix share one counter. Use {store_id} or different prefixes to give each store view its own series.
• Each value is taken with one atomic database statement on a separate connection, so parallel checkouts never get the same value and the counter is not locked for the length of an order or invoice transaction.
• Every candidate number is checked against the existing documents of all store views and skipped if taken. Magento's unique key on the document number remains the final guard.
• If a custom number cannot be built, Magento's own number is used and the error is logged, so a checkout never fails because of the numbering.
• The module plugs into Magento's sales sequence; it does not rewrite core classes. Magento's own sequence is not used while a custom format is active.

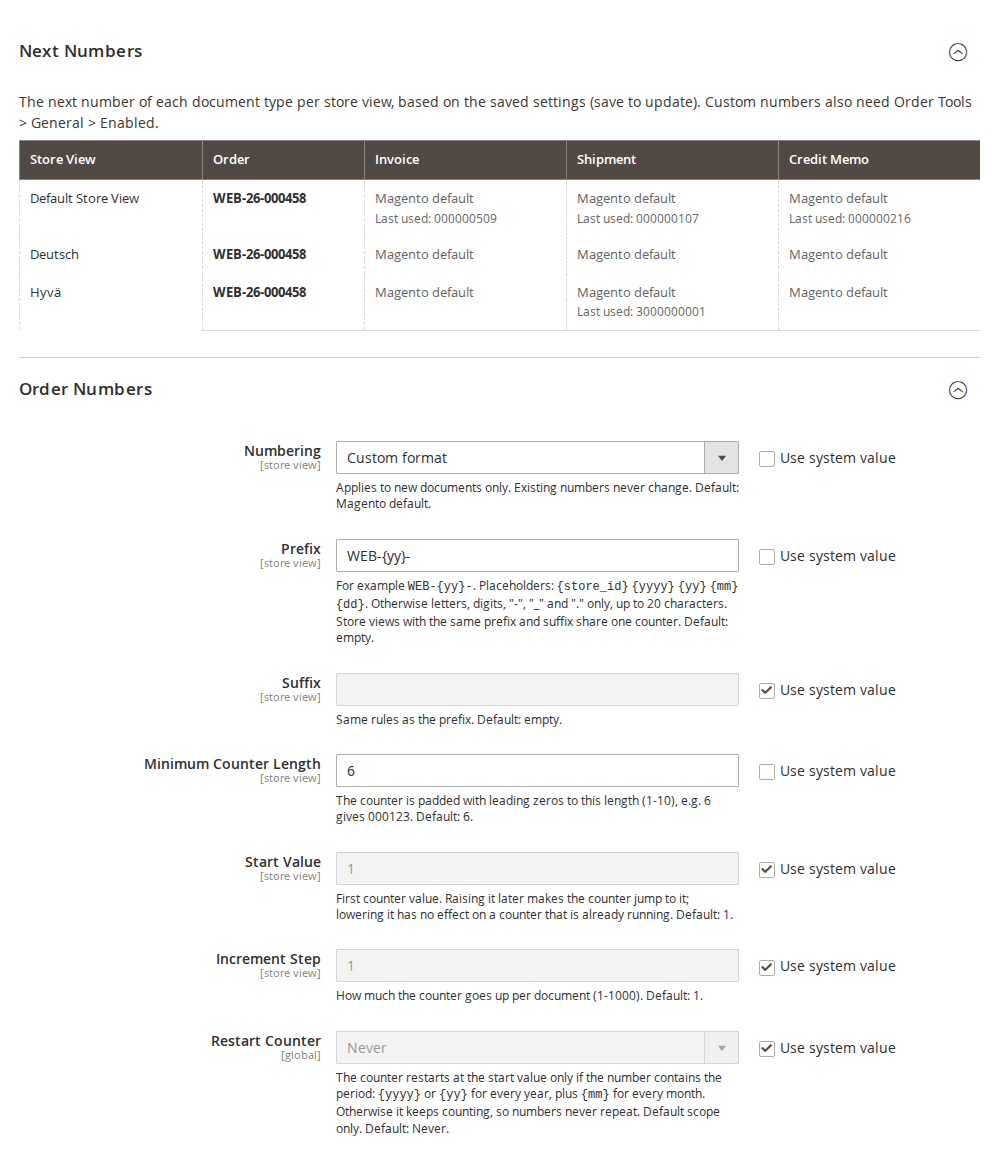

Next Numbers

The Next Numbers table shows the next number of each document type for every store view, based on the saved settings (save to update it), with the last number used. Custom numbers also need Order Tools > General > Enabled; the table shows a warning when Order Tools is switched off.

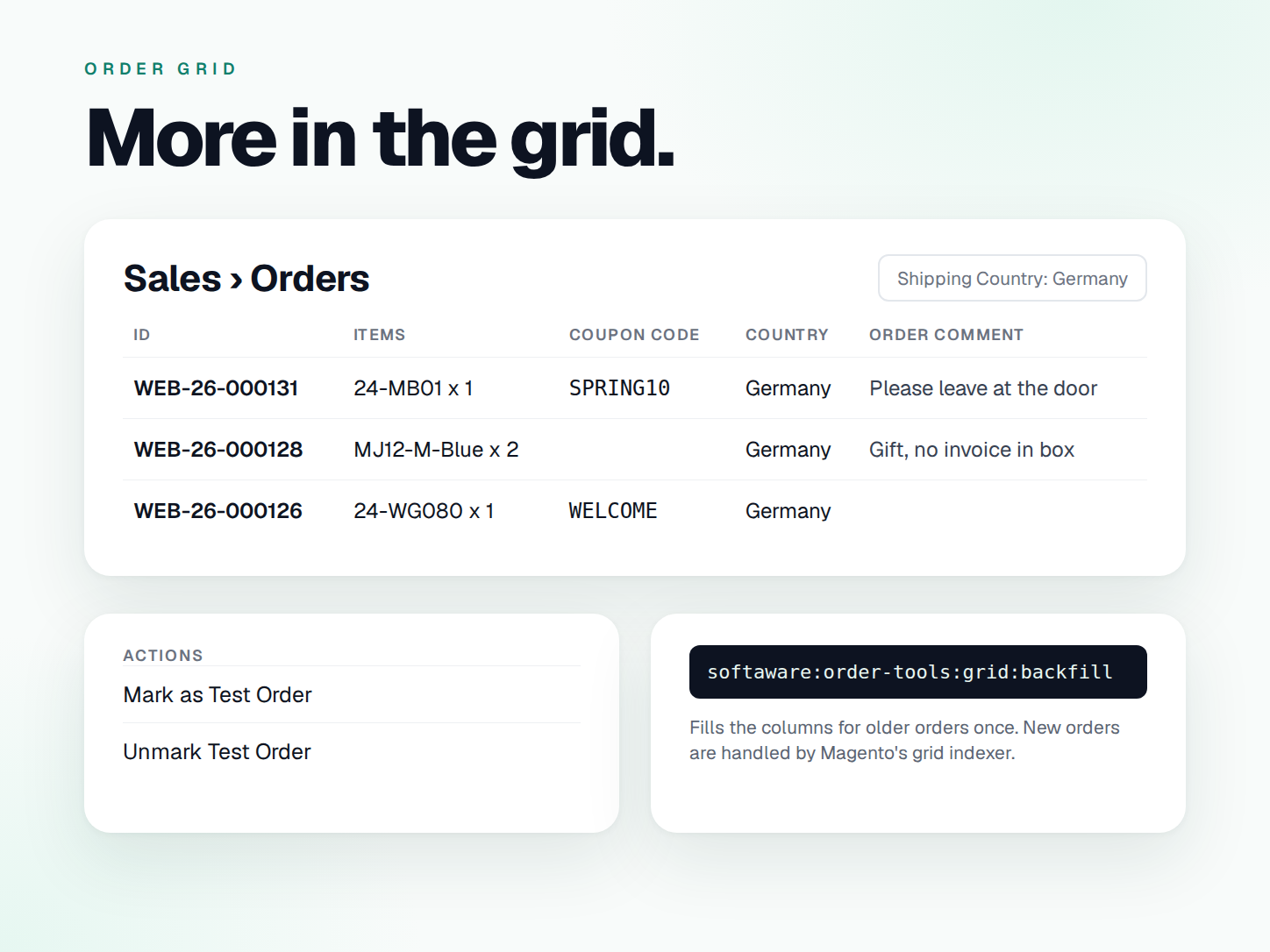

5. Order grid columns

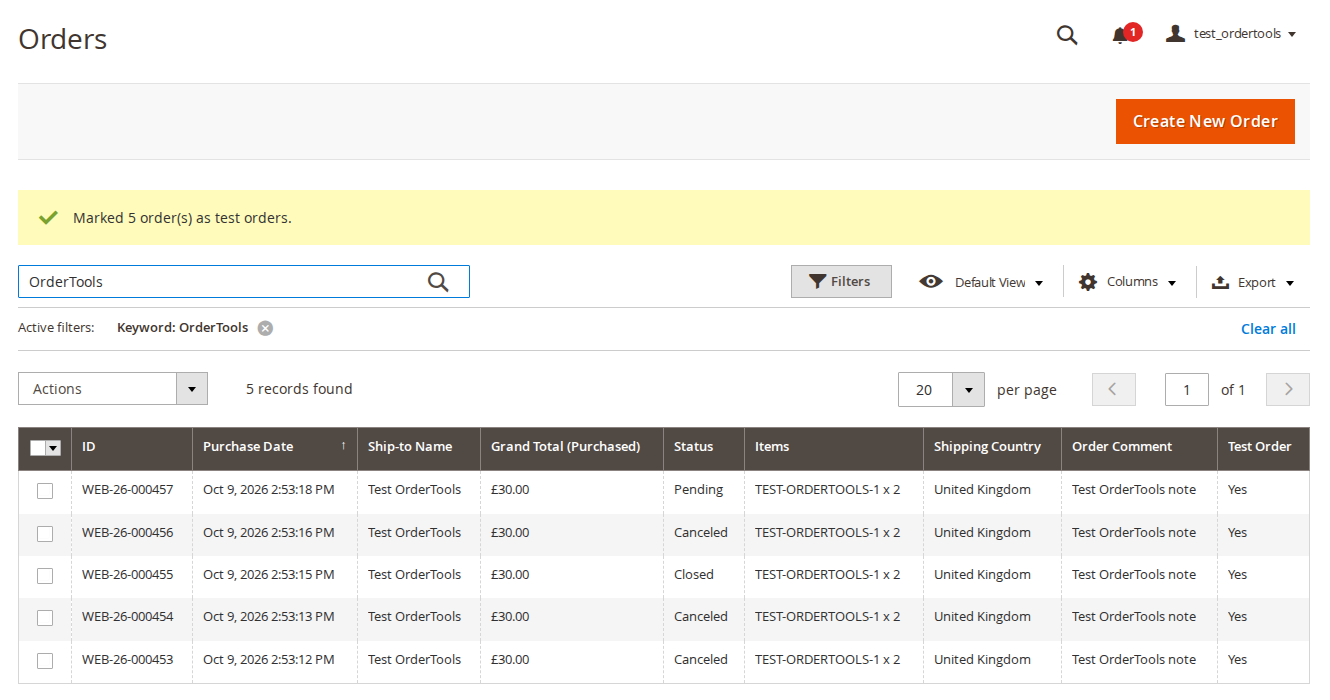

Select the columns under Order Grid > Extra Columns. They appear in Sales > Orders and can be shown, hidden and filtered like Magento's own columns:

The columns are kept up to date by Magento's order grid indexer, with synchronous or asynchronous grid indexing. For orders placed before the installation run the backfill once (section 8).

6. Test orders

With Test Order Flag = Yes, select orders in Sales > Orders and choose Actions > Mark as Test Order (or Unmark Test Order). Filter the Test Order column to find them later, for example to cancel and delete them. The flag is also stored in the Deleted Orders Log.

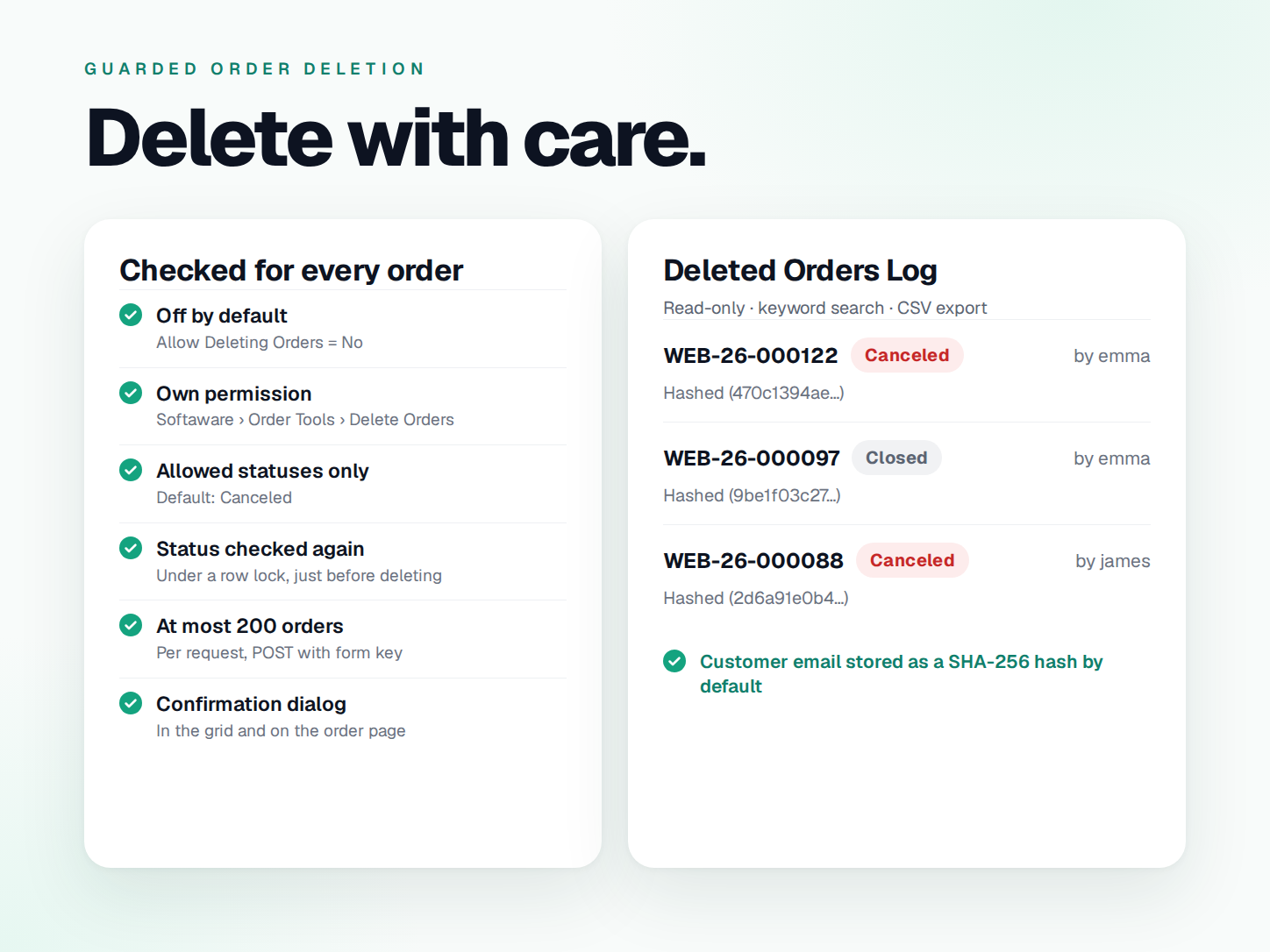

7. Deleting orders

Deleting orders is permanent. It is off by default and protected by several guards, all checked on the server for every order, whatever the admin page showed:

1. Allow Deleting Orders must be Yes (and Order Tools enabled).
2. The admin role needs the ACL resource Softaware > Order Tools > Delete Orders. It is not added to any role automatically; roles with access to all resources have it.
3. The order's current status must be one of Only Orders With These Statuses (default: Canceled only). The status is checked again with a row lock inside the delete transaction, so an order whose status changed in the meantime is not deleted.
4. At most 200 orders per request.
5. Only POST requests with a valid form key are accepted, after a confirmation dialog.

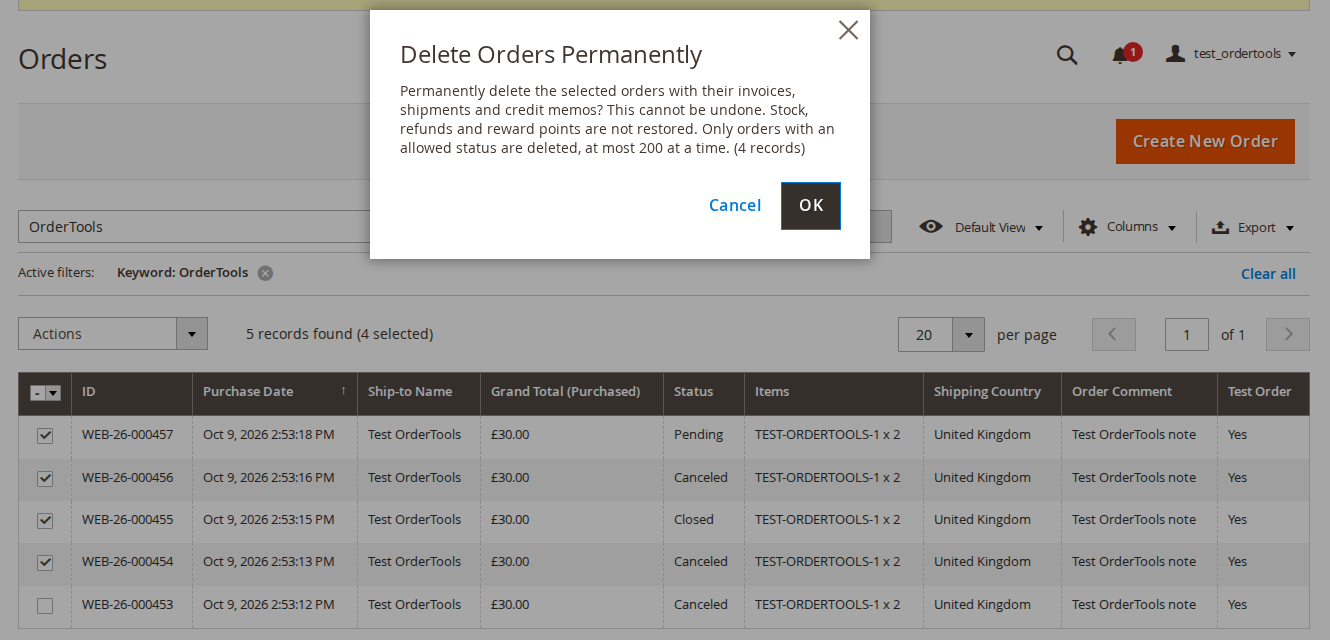

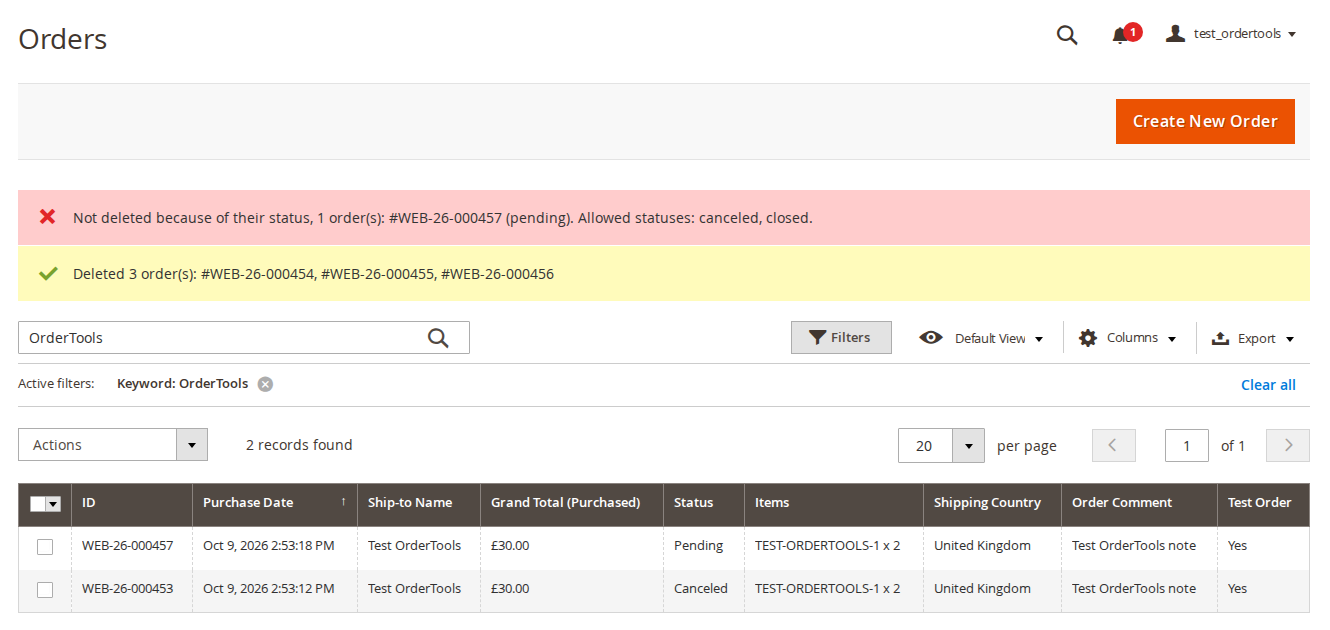

From the order grid: select the orders in Sales > Orders, choose Actions > Delete Permanently and confirm. The dialog shows the number of selected orders. Orders with a status that is not allowed are skipped and named in a message; the others are deleted.

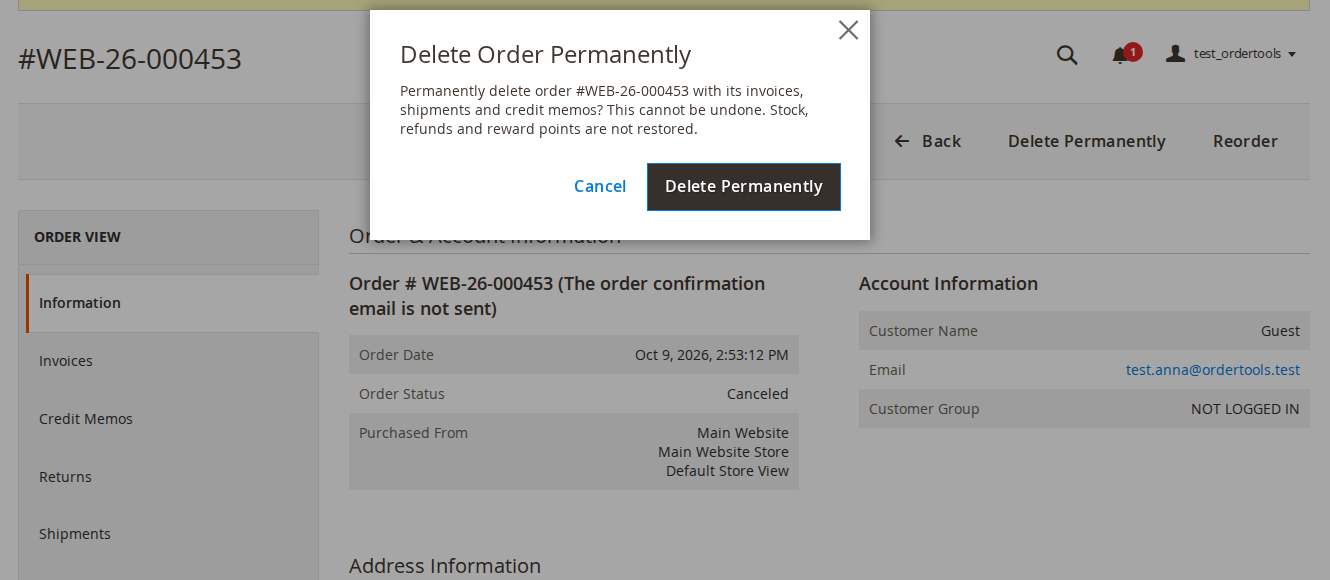

From the order page: the Delete Permanently button appears only when deleting is on, the role has the permission and the order's status is allowed. The dialog Delete Order Permanently names the order number.

What is deleted

The order with its invoices, shipments and credit memos (through Magento's repositories, so their grid rows are removed too), items, addresses, payment, payment transactions, comments and tax rows. Each order is deleted in its own database transaction together with its log entry: if anything fails, nothing of that order is deleted.

What is not restored

Nothing is reversed: no stock, no refunds, no reward points or store credit. Cancel and refund an order first if you need that. Downloadable links bought with the order are kept by Magento (unlinked from the order). Sales reports keep their aggregated figures until they are refreshed.

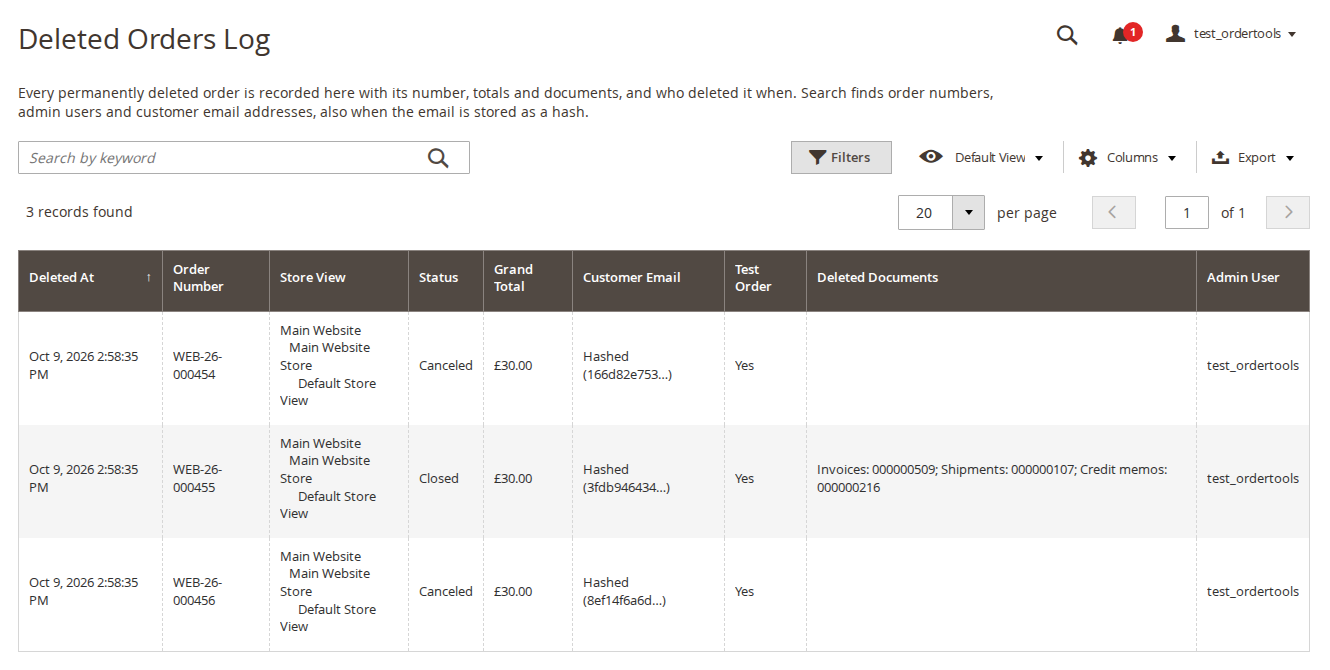

Deleted Orders Log

Softaware > Order Tools > Deleted Orders Log lists every deleted order, newest first: deleted at, order number, store view, status, grand total, customer email, test order flag, the deleted document numbers and the admin user. Order ID, currency, order date and IP address are available under Columns.

• The customer email is stored as a SHA-256 hash by default (shown shortened as "Hashed (...)") or in clear, depending on Customer Email in the Log.
• The keyword search finds order numbers, admin users and email addresses. An email address also finds entries where it was stored as a hash, so you can check whether a given customer's order was deleted.
• Export downloads the log as CSV. Values that a spreadsheet would run as a formula are prefixed with an apostrophe.
• The log is read-only; entries cannot be deleted from the admin.
• While nothing has been deleted, the page explains whether deleting is switched on and which statuses can be deleted, with links to the orders and the settings.

8. Command line

bin/magento softaware:order-tools:sequence:show [--store=<id|code>]
bin/magento softaware:order-tools:grid:backfill [--batch-size=500]

• sequence:show lists the numbering, last number and next number of each document type per store view. It is read-only and does not use up a number.
• grid:backfill fills the Order Tools grid columns for existing orders, in batches of 500 by default. Run it once after installation.

There is no command for deleting orders, on purpose: deleting is only possible in the admin, under its permission.

9. Permissions (ACL)

Under System > Permissions > User Roles > Role Resources > Softaware > Order Tools:

Admins who delete orders also need access to Sales > Orders. On Adobe Commerce, give Delete Orders only to roles with access to all websites (admin role scopes were not tested with deletion).

10. Troubleshooting

11. Limitations

• Orders edited in the admin keep Magento's behaviour: the new order gets the old number plus -1, -2, ...
• The counter restart applies to the whole installation (default scope).
• With Enabled = No, the sot_* grid columns and the counters stay; the grid columns are still filled by the grid indexer, just not shown.

12. Uninstall

bin/magento module:disable Softaware_OrderTools
composer remove softaware/module-order-tools
bin/magento setup:upgrade

Existing document numbers stay as they are; new documents use Magento's own sequence again.

Export the Deleted Orders Log as CSV first if you want to keep it: once the module is disabled, Magento's declarative schema can drop the module's tables (softaware_ordertools_counter, softaware_ordertools_deleted_order) and the sot_* columns of sales_order and sales_order_grid on the next setup:upgrade.
